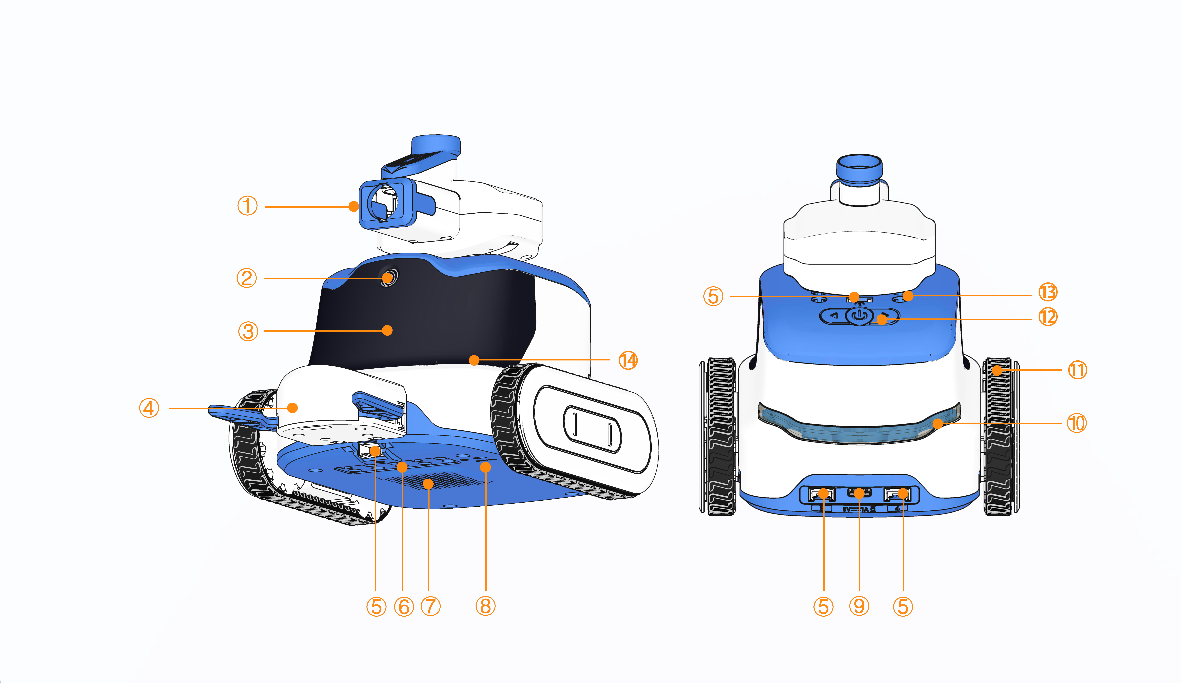

Structure

No.	Name	Description
①	Launcher	Programmable to control the number of launches; accurately fires 12 mm marbles.
②	Camera	Supports image capture at 1600×1200 resolution; delivers high-quality images with low power consumption.
③	Expression Dot Matrix Display	8×24 white LED dot-matrix panel with adjustable overall brightness; each LED point is programmable to display expressions, status, or user-defined content.
④	Robotic Gripper	Provides precise gripping and releasing functions; supports programmable open-close actions.
⑤	Grove Ports	Equipped with four Grove ports for connecting various sensors or expansion modules, enabling versatile functional extensions.
⑥	5-Channel Color & Grayscale Sensor	Detects ground color and brightness values; recognizes line-following tracks or field colors—ideal for smart-driving and similar applications.
⑦	Speaker	Programmable to produce different types of sounds as required.
⑧	Privacy Switch	Toggle-type switch that directly controls power to the camera and microphone. When turned on, the system disables both to protect user privacy.
⑨	Type-C Port	Used for charging and serial communication via Type-C cable; enables program downloading and debugging.
⑩	Programmable Tail Light	Programmable RGB tail light supporting multiple color effects; functions as a battery indicator during charging or standby.
⑪	Motion Module	Employs a track-drive system with encoder motors for precise, stable movement and excellent traction and obstacle-crossing performance.
⑫	Navigation/Confirm Buttons	Center button for power and confirmation; A/B buttons for program switching—also programmable for custom functions.
⑬	Building-Block Peg Holes	Compatible with small-particle building-block peg connections.
⑭	Microphone	Captures sound for voice input and recognition.
