Vision Recognition Blocks

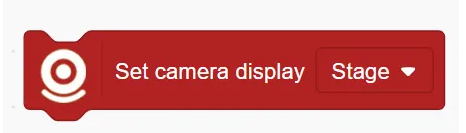

Set Camera Display ()

Sets where the camera feed is shown:

Options include Stage Area Display or Popup Window Display

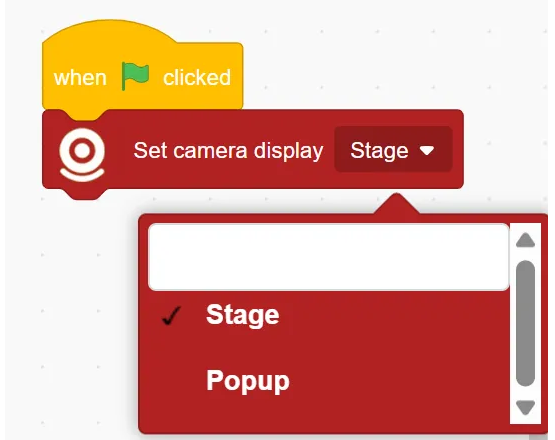

Example

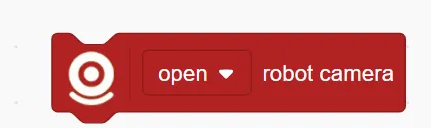

() Robot Camera

Controls the robot’s built-in camera:

Options: open / Mirror is enabled / close

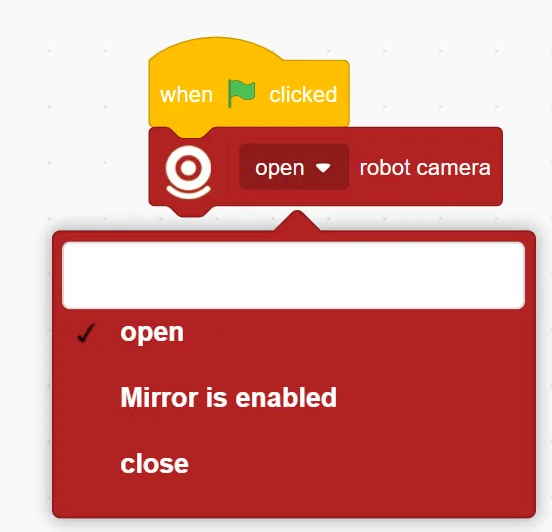

Example:

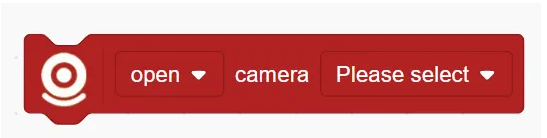

() Computer Camera ()

Controls the computer’s built-in or external camera:

Options: open / Mirror is enabled / close

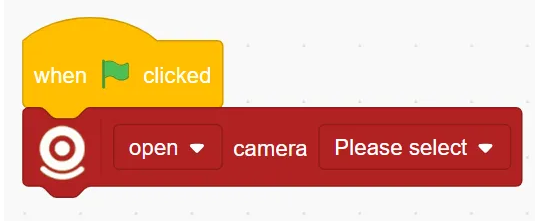

Example:

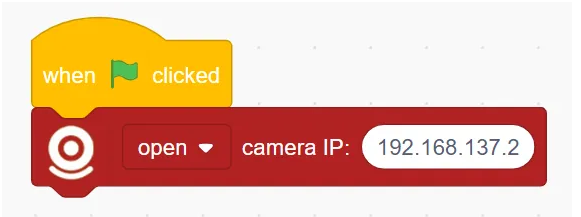

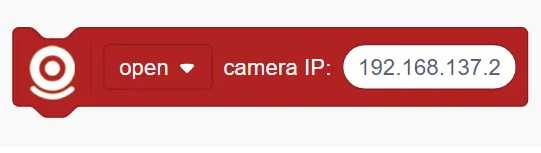

() Camera IP ()

Controls an IP camera over the network:

Options: open / Mirror is enabled / close

Example:

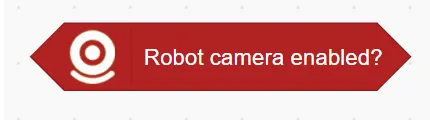

Robot Camera Enabled Successfully?

Checks whether the robot’s camera has been successfully enabled.

Returns a true/false value.

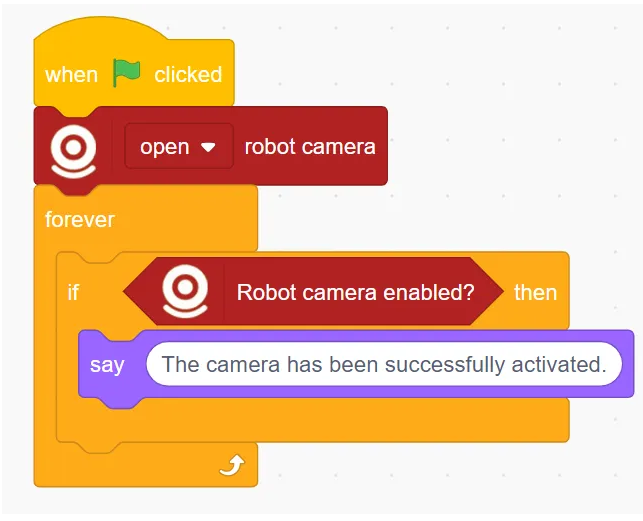

Example:
